Vehicle‑Mounted IMSI Catcher

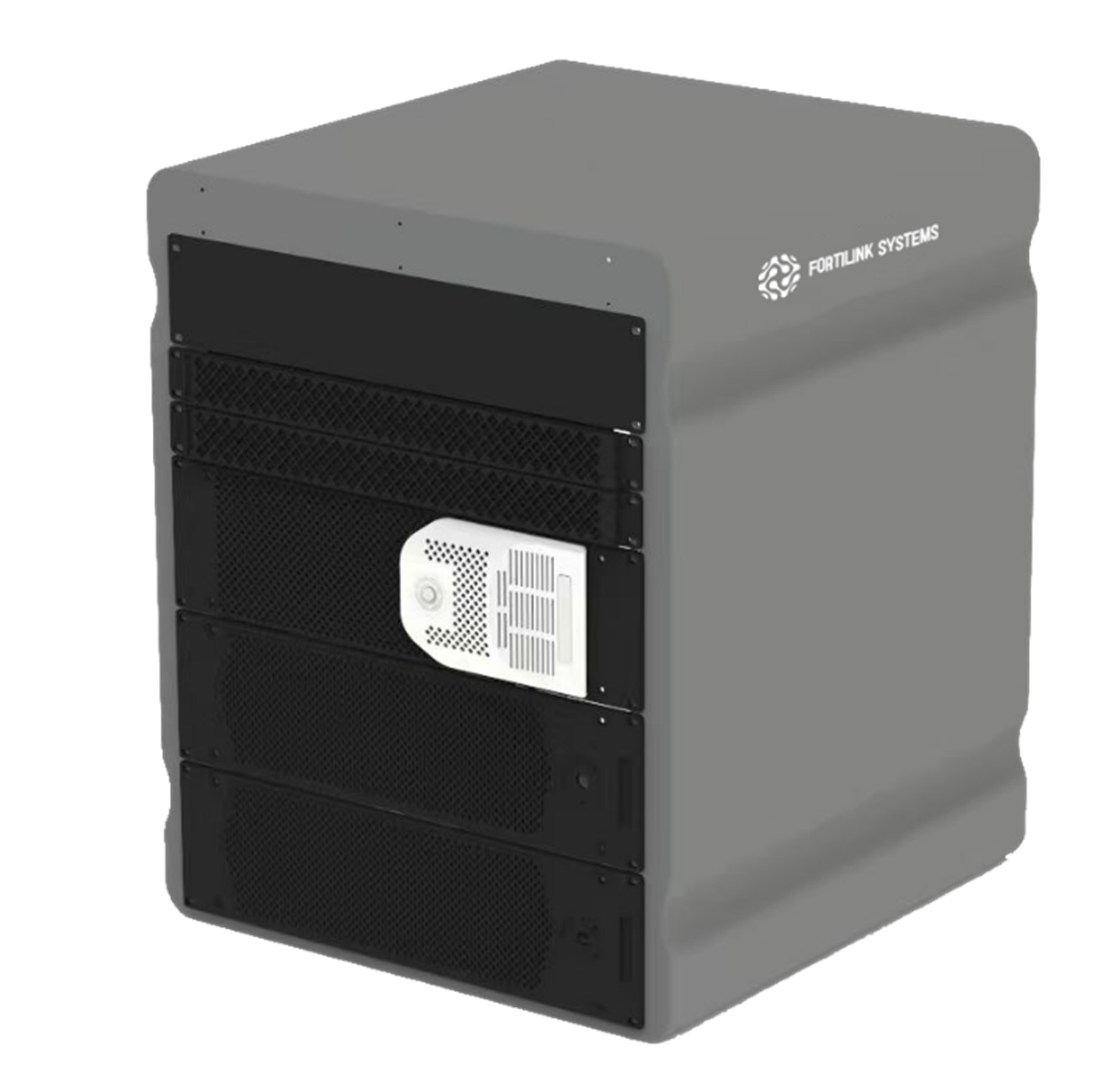

FortiLink Systems Vehicle-Mounted IMSI Catcher
Model: FLS-VMIC60W12C
Advanced Cellular Intelligence for Mobile Operations
The FortiLink Systems Vehicle-Mounted IMSI Catcher (FLS-VMIC60W12C) is a high-performance cellular signal intelligence solution engineered for on-vehicle and stationary deployment. Designed to operate across 2G, 3G, 4G LTE, and 5G networks, the system enables authorized agencies to detect, identify, and locate mobile devices over wide areas with exceptional accuracy.
With a multi-channel SDR architecture, high RF output power, and an integrated direction-finding module, the FLS-VMIC60W12C provides reliable long-range detection and precise localization in urban, rural, and open-terrain environments.
Key Capabilities
- Multi-Network Support: Operates across 2G, 3G, FDD & TDD LTE, and 5G NR (NSA & SA), ensuring compatibility with modern and legacy cellular networks.
- Long-Range Detection: High-power RF transmission (up to 60 W per band) enables detection distances exceeding 1,000 meters, depending on terrain and environment.
- High-Capacity Collection: Capable of collecting data from up to 12,000 mobile terminals per minute, even in dense cellular environments.
- Precision Localization: Built-in direction-finding technology supports positioning accuracy of less than 1 meter, allowing rapid narrowing down to specific buildings, floors, or rooms.
- Flexible Deployment: Designed for vehicle-mounted or fixed installations, with omnidirectional and directional antenna options for maximum operational flexibility.
- User-Friendly Control: Intuitive Android app-based interface with optional laptop platform for local and remote operation.
Intelligent Operations
- Automatic frequency scanning and configuration
- Detection and control modes with seamless switching
- Blacklist and whitelist management with real-time alerts
- Signal-strength-based sorting for proximity assessment
- Secure local storage and remote data transmission
Law Enforcement & Security
Supports authorized agencies in identifying and locating mobile devices during investigations, surveillance operations, and security missions.
Typical users
- Police departments
- Military units
- Border and homeland security agencies
Search & Rescue (SAR)
Enhances disaster response by detecting mobile phones of missing or trapped individuals in collapsed buildings, remote areas, or disaster zones.
Typical users
- Earthquake and fire departments
- Civil defense organizations
- Emergency management agencies
- Search and rescue teams
Why FortiLink Systems?
- Integrated multi-technology platform
- High RF output and wide frequency coverage
- Proven SDR architecture
- Designed specifically for mobile operations
- Built for demanding government and mission-critical use
TECHNICAL DATASHEET
General Information
| Parameter | Specification |
|---|---|
| Product Type | Vehicle-mounted cellular intelligence system |
| Deployment | On-vehicle or stationary |
| Target Identification | IMSI, IMEI |
| User Control | Android APP, optional laptop platform |
Network & Radio
| Parameter | Specification |
|---|---|
| Supported Standards | 2G, 3G, FDD & TDD LTE, 5G NR (NSA & SA) |
| SDR Architecture | Multi-channel SDR |
| Number of SDR Radios | Up to 26 |
| SDR BTS | Up to 12 |
| Supported Frequency Range | 600 MHz – 4.2 GHz |
| Supported Bands | Up to 12 configurable bands |
| Automatic Frequency Scan | Yes |
RF Performance
| Parameter | Specification |
|---|---|
| RF Output Power | Up to 60 W per band |
| Power Adjustment | 1 dB step |
| Antenna Types | Omnidirectional / Directional |
| Antenna Gain | Omni: 3–7 dBi / Directional: 8–14 dBi |
| Maximum Collection Distance* | Urban: up to 550 m (2G) / Open area: up to 2000 m (2G) |
Positioning & Analysis
| Parameter | Specification |
|---|---|
| Direction Finding | Built-in |
| Positioning Accuracy | < 1 m (with DF device) |
| Terminal Collection Rate | Up to 12,000 terminals per minute |
| Data Analysis | IMSI/IMEI correlation across time and location |
| Blacklist / Whitelist | Supported |
| Alerts | Real-time alarms for blacklist hits |
System Functions
| Feature | Support |
|---|---|
| Detection & Control Modes | Yes |
| Local Data Storage | Yes |
| Data Backup | Yes |
| Remote Data Transmission | Wired / Wireless |
| Local Access | Wi-Fi / Wired network |
| Remote Management | Supported |
Power & Environment
| Parameter | Specification |
|---|---|
| Power Consumption | < 2000 W |
| Power Supply | Built-in battery, DC 12 V or AC 220 V |
| Battery Operation | 3–5 hours |
| Operating Temperature | −20 °C to +50 °C |
| Operating Humidity | 5% – 95% |
Physical Characteristics
| Parameter | Specification |
|---|---|
| Dimensions | 490 × 450 × 430 mm (reference) |
| Weight | < 45 kg (including battery) |
